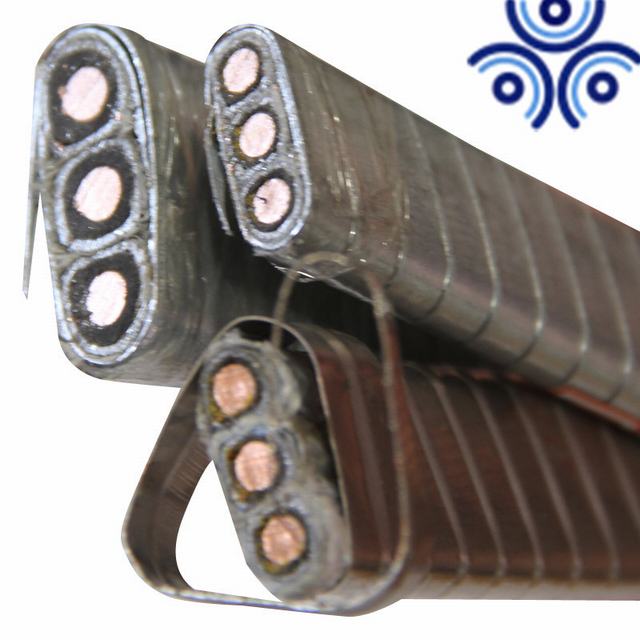

Flat submersible oil pump ESP cable

We are the largest manufacturer of Flat submersible oil pump ESP cable  in China!

1. Application: Flat submersible oil pump ESP cable is used for the power cable of ESP units which is installed on land or offshore oil Wells.

2. Flat submersible oil pump ESP cable : The cables for submersible oil pump or pump unit can be produced with different types and specifications, the cross-section of conductor is 42mm2 and below. The well temperature is from 50℃ to 180℃, the max. Continuous working temperature of conductor is 204℃. The insulation material that can be used is as below: PP, EPR, polyimide-F46, fluoroplastics, XLPE, etc. The material of inner jacket includes NBR, compound of the neoprene and PVC, EPR, fluoroplastics, lead, etc. The outer sheath material is as the galvanized steel tape, stainless steel tape, etc. All kinds of cables for submersible oil pump can be developed according to the customer’s requirements.

For Flat submersible oil pump ESP cable , we have certificate of Cotecna (for Colombia), and test report according to IEEE Std 1018. Mainly exported to USA, Middle east, and Colombia.

Pls contact us for details for Flat submersible oil pump ESP cable:
