Factory price cable de aluminio desnudo aac duplex ABC cable
| Place of Origin: | Henan China |
| Brand Name: | Sanhe Cable |
| Model Number: | 2 core |
| Insulation Material: | XLPE |
| Type: | Low Voltage |
| Application: | Overhead |
| Conductor Material: | Aluminum |
| Jacket: | none |
| Product name: | Factory price cable de aluminio desnudo aac duplex ABC cable |
| Certificate: | ISO9001 |
| Conductor: | Alulminum |
| Packing: | Wooden drum |
| Keywords: | abc cable sizes |
| Conductor type: | Stranded Conductor |
| MOQ: | 2000 Meters |
| Usage: | Electric Transmission |
| Port: | Qingdao |
| Warranty: | 10 Years |
| Selling Units: | Single item |
| Single package size: | 100X10X10 cm |
| Single gross weight: | 0.5 KG |
| Package Type: | Wooden drum, steel iron drum |
Products detail:
1.Conductor material
ABC Service Drop main contain Phase conductor,Neutral Messenger,some have Street Lighing.
With 1350 Aluminum,6201,8000 series Aluminum-Alloy, Class A/B/C Steel,Insualted:XLPE/PE/PVC/HDPE/LLDPE…….
Phase:All Aluminum Conductor (XLPE/PE/PVC Insulated)
Neutral:All Aluminum Conducotr/All Aluminum Alloy Conductor(XLPE/PE/PVC Insulated)/Aluminum Conducotr Steel Reinforced
Street Lighting:All Aluminum Conductor(XLPE/PE/PVC Insulated)
2.Conductor standard
ASTM IEC NFC33 ANSI/ICEA
| Code name | AWG or kcmil | Bare Neutral Messenger | Phase Conductor |
Weight kg/km |
|||
| ACSR |
Rated Strength lbs. |
AAC |
Insul. Thick. Mm |
||||
| No./Dia Mm | No./Dia. Mm | No./Dia Mm | |||||
| Shepherd | 1*6AWG+1*6AWG | 1/1.68 | 6/1.68 | 1190 | 7/1.56 | 1.14 | 113 |
| Terrier | 1*4AWG+1*4AWG | 1/2.12 | 6/2.12 | 1860 | 7/1.96 | 1.14 | 173 |
| Chow | 1*2AWG+1*2AWG | 1/2.67 | 6/2.67 | 2850 | 7/2.47 | 1.14 | 266 |
| Bull | 1*1/0AWG+1*1/0AWG | 1/3.37 | 6/3.37 |
4380 |
19/1.89 | 1.52 | 427 |
| Voluta | 2*6AWG+1*6AWG | 1/1.68 | 6/1.68 |
1190 |
7/1.56 | 1.14 | 170 |
| Conch | 2*2AWG+1*2AWG | 1/2.67 | 6/2.67 |
2850 |
7/2.47 |
1.14 |
389 |
| Cenia | 2*1/0AWG+1*1/0AWG | 1/1/37 | 6/3/37 |
4380 |
19/1.89 | 1.52 | 625 |

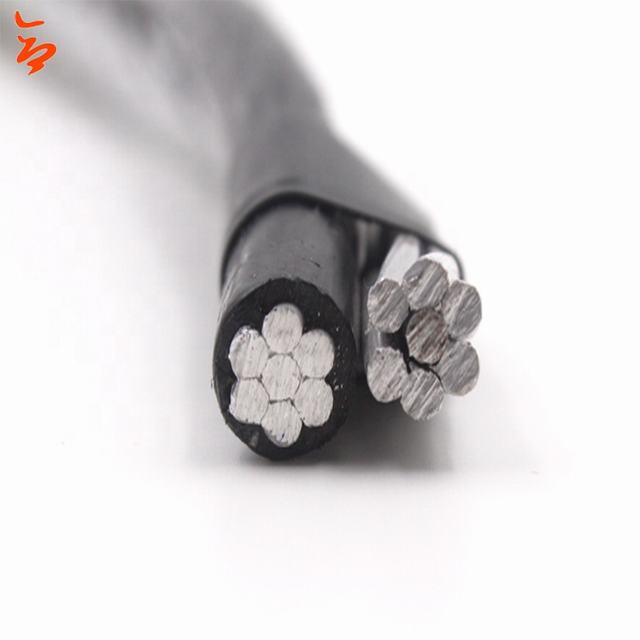

3. Pictures show
Mature Technical, Wealthy Experience, 100% Product Inspection
Company Profile
Zhengzhou Sanhe Cable Co., Ltd. is founded in 2008 .We specialize in producing and exporting all kinds of wires and cables. We have professional engineers and advanced technical staff in this line.
Our main products include PVC insulated cable & wire, 0.6/1~26/35kV XLPE insulated power cables, Control cables, Overhead insulated cables, General rubber sheath flexible cable , Rubber sheath flexible cable for mining, Welding cables, Aerial Bundle Cables (ABC Cable), Service Drop( Single, duplex, triplex, quadruplex), AAC, ACSR, AAAC, Polyester enameled round copper wire, Guy wire, Flame Retardant Cable,Fire Retardant Cable, Smoke halogen-free cable,etc.
Our factory could produce the wires and cables according to many standards including GB, IEC, ASTM, DIN, JIS, NF, BS, AS/NZS and so on. We will do our best to meet your requirements.
