Al LSHF LSHF SWA LSHF LOW VOLTAGE POWER CABLE
| Place of Origin: | china |
| Brand Name: | sanhe |
| Model Number: | VLV32 |
| Insulation Material: | PVC |
| Type: | Low Voltage |
| Application: | Power Station |
| Conductor Material: | Aluminum |
| Jacket: | PVC |
| Product name: | Amored Power Cable |
| Certificate: | CE |
| Standard: | IEC 60502 |
| Conductor: | AL Core |
| Insulation: | PVC |
| Armour: | SWA |
| Sheath: | PVC |
| Package: | wooden durm or iron wooden drum |
| Sheath color: | Black |
| Use: | power station |
| Selling Units: | Single item |
| Single package size: | 105X20X25 cm |
| Single gross weight: | 1 KG |
| Package Type: | Wooden drum ,iron wooden drum or according to customer requirement |
| Package Preview: | https://sc01.alicdn.com/kf/HTB184EKaEuF3KVjSZK9q6zVtXXa8.jpg_640x640.jpg,https://sc01.alicdn.com/kf/HTB12ooNaAWE3KVjSZSyq6xocXXas.jpg_640x640.jpg |
1.Application
Cable for power supply, for rated voltage up to 0.6/1kV. Suitable for outdoor fixed installations when it is necessary to protect the cable against mechanical aggression or against rodents threat. Can be laid in free
air, installed in ducts or directly buried. Excellent mechanical protection during laying, installation and service.

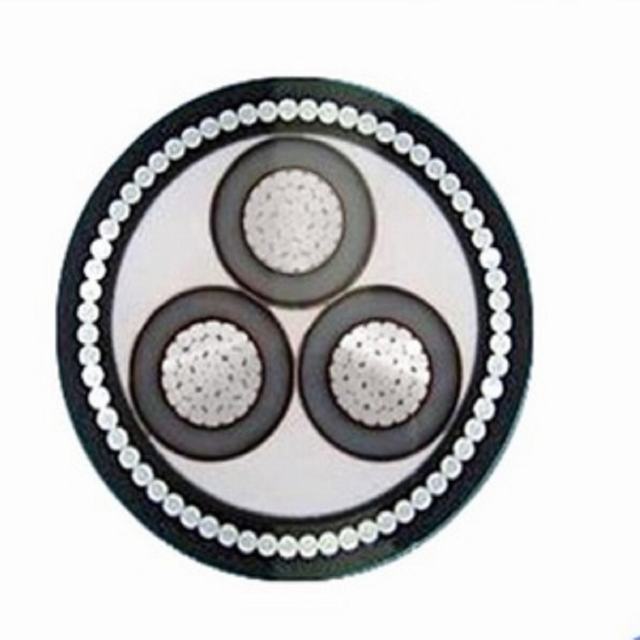

2.Construction
| Cable Designation | Al / PVC / PVC / SWA / PVC SWA – Steel wire armour AWA – Aluminium wire armour |
| Construction Characteristics | Conductor
Aluminium: solid class 1 or rigid stranded class 2 circular or sector shaped. |
| Insulation | LSHF – (Low Smoke Halogen Free) |
| Bedding /Inner Sheath | LSHF – (Low Smoke Halogen Free) |
| Armour | Steel galvanized wires helical applied. For single core cables steel is substituted by aluminium wires. |
| Oversheath | LSHF – (Low Smoke Halogen Free) |
3.Standard
4.Specification Examples
Voltage Rating: 600/1000v
Temperature Rating: -15°C to +90°C
Minimum Bending Radius: As Per Manufacturers Datasheet.
Should not be installed at temperatures below 0°C or above 40°C
